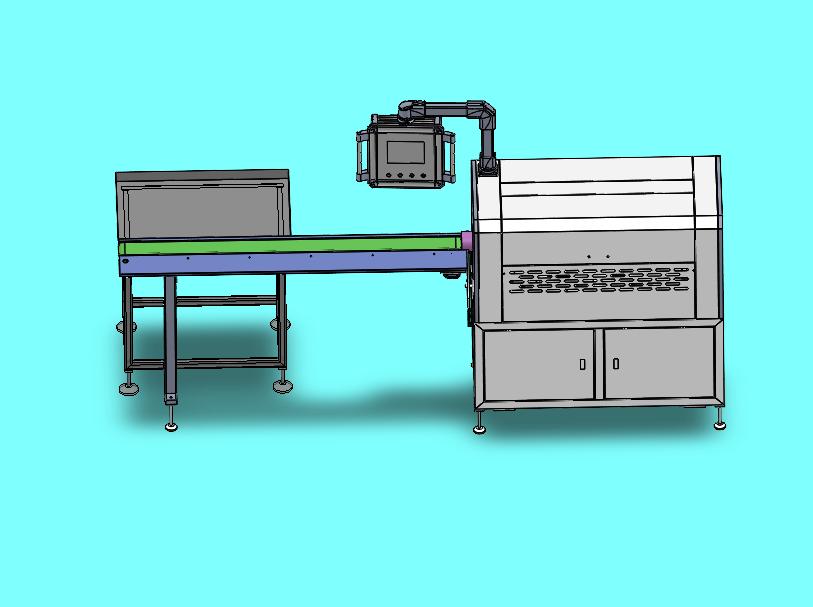

Four-Screw Cup Curling Machine Specification List

Name	Model	Brand
1. Screw Material	Diameter 85 * Length 950 * 4 pcs	National Standard Copper
2. Main Drive Motor	3KW	Litian
3. Conveyor Motor	120W	Taili
4. Speed Controller	120W	(Adaptive)
5. Touch Screen	TS2-700-Z	WECON
6. PLC Programmable Controller	XD3-32T-E	WECON
7. Communication Cable	5 meters	WECON
8. PLC Temperature Control Expansion	XDE6TC-P	WECON
9. Inverter	3.7KW	Jintian
10. Solid State Relay	75A / 25A	Mibo / Changde
11. Intermediate Relay	RL-G08F RG-2D024L	Mibo
12. Switching Power Supply	150W	Mibo
13. Buttons / Circuit Breaker	-	Schneider

Main Technical Parameters

Parameter Item	Parameter Value
Suitable Materials	PS, PP, PLA, PET
Suitable Product Caliber	Caliber 60mm - 130mm
Screw Heating Power	4 groups / 2KW
External Heating Power	4KW
Total Rated Power	15.2KW
Working Efficiency	Max / 1200 RPM
Power Supply	380V / 50Hz (Three-phase four-wire)
Machine Material (Frame / Casing)	Stainless Steel
Overall Dimensions (L × W × H)	3250mm * 1180mm * 1750mm
Total Machine Weight	600Kg

Cup making machine includes automatic cup feeding, heating, and curling.
The machine conveying structure features a dual-belt V-type cup feeding design, ensuring more stable feeding and caliber changes without adjustment.
Temperature control adopts PLC control with zone-based temperature regulation (automatic power-off when reaching the set temperature).
The curling caliber supports synchronous adjustment functionality for different sizes.
Shutdown incorporates air-cooling auxiliary temperature reduction, automatically shutting down once the set minimum temperature is reached.
